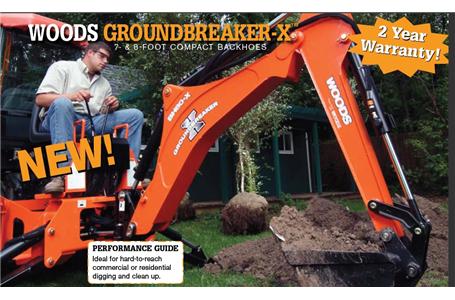

Ten years ago Woods introduced a series of innovative new backhoes that were more powerful, and more reliable than
anything on the market. Today, we celebrate a decade of proven performance by introducing the next generation of
Groundbreaker backhoes, the Groundbreaker-X™. The X means extra everything. Extra ability – excavator style curved boom offers better reach and visibility, with less repositioning than a straight boom.

Extra power – significantly higher digging forces than competitive models

Extra durability – heavy-duty, construction grade Gannon® buckets

Extra productivity – clean up and carry objects with the optional thumb

Extra stability – cast, not welded, flip-over stabilizer pads

Extra comfort – low console, big walk-through platform, and adjustable high-back seat

Extra simple – skid steer quick-coupler hitch is simple to attach and detach

Extra Security - (2) year warranty
Specifications
Warning! Some images may show safety shields removed to provide a better view. Equipment should never be operated with any safety shield removed. Some machines in this brochure
may be shown with optional equipment. Always operate machines in accordance with supplied operator’s manuals. ©2005 Woods Equipment Company. All rights reserved. WOODS,
the Woods logo, “Tested. Proven. Unbeatable.”, Groundbreaker, and Groundbreaker-X are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks
not owned by Woods Equipment Company that appear in this brochure are the property of their respective companies or mark holders. Specifications subject to change without notice.
B-09052
Woods Equipment Company 2606 South Illinois Route 2, PO Box 1000, Oregon, Illinois 61061 tel 800-319-6637 www.WoodsEquipment.com
Model BH70-X BH80-X
Tractor PTO horsepower 18-40 hp 20-45 hp
Digging depth - 2' flat 84.5" 96.5"
Digging depth - 8' flat 61.25" 75.75"
Reach from swing pivot 113.5" 125.5"
Loading height 66" 75.25"
Transport height 74.75" 82.25"
Swing arc 180° 180°
Bucket rotation 180° 180°
Stabilizer spread (up) 58.5" 58.5"
Stabilizer spread (down) 88.5" 88.5"
Relief pressure 2,030 psi 2,470 psi
Bucket digging force 3,110 lbs 3,780 lbs
Dipperstick digging force 2,000 lbs 2,480 lbs
2-cylinder swing yes yes
Swing speed control – yes
Bucket widths 9-24" 9-36"
Bolt-on vs. pin-on teeth bolt-on bolt-on
Thumb optional optional
Flip-over stabilizers yes yes
Stabilizer street pads optional optional
PTO pump kit optional optional
Clean-up (ditching) bucket – 36"
Cemetery bucket – 36
