Products » Massey Ferguson » MF1528 4WD Platform; Compact Tractor
Model Quick Search

Call for Price
(506) 839-2442

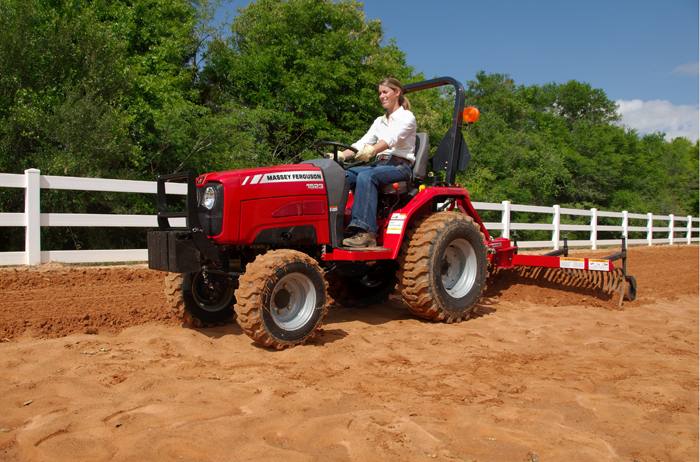

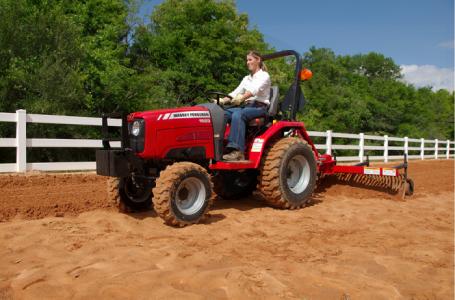

2010 Massey Ferguson MF1528 4WD Platform; Compact Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Gross engine HP: 28.4 hp
    • PTO HP (gear/hst): 24.5 hp /22.3 hp
    • Rated engine speed: 2500 rpm
    • Type: 3-cylinder diesel
    • Displacement: 89.28 cu. in. (1463 cc)
    • Cooling system: Liquid cooled
    • Fuel tank capacity: 7.9 gal. (30 l)
    Transmission Options
    • Standard gear: 9Fx3R Constant mesh
    • Hydrostatic w/Cruise: 3 range
    • Rear brakes: Wet disc
    PTO
    • Rear PTO type (Gear/HST): Live/Ind. 540 RPM
    • Control (Gear/HST): Mech/electro-hydraulic
    • Mid PTO type: 2000 rpm (Opt. on Gear)
    Hydraulics
    • Type of system: Open center
    • Flow at remotes: 7.4 gpm (28 l/min)
    • Pwr steering flow (SS; HST/PS): 2.6 gpm (9.8 l/min)
    • Total flow: 10 gpm (37.8 l/min)
    • Rear auxiliary remotes: 2 spool (optional)
    3-point Hitch
    • ASAE hitch: Cat. I
    • Controls: Position
    • Rate of drop control: Standard
    • Lift capacity @ hitch point: 2425 lbs. (1100 kg)
    • Type of stabilizers: Turnbuckle
    • Type of link ends: Fixed
    Operator Area
    • Platform type: Semi-flat isolated
    • ROPS: Folding
    • Seat type: Suspended
    • Seat belt type: Retractable
    • Hood type: Flip up
    Dimensions (With AG tires)
    • Overall length: 112.4 in. (2855 mm)
    • Minimum overall width: 53.5 in. (1360 mm)
    • Maximum height over ROPS: 80.7 in. (2050 mm)
    • Ground clearance: 10 in. (255 mm)
    • Wheelbase: 65.6 in. (1665 mm)
    Optional Implements
    • Loaders
    • Backhoes
    • Landscape Rakes
    • Box Blades
    • Grader Blades
    • Post Hole Digger
    • Mid-Mount Mower
    • Rear-Mount Mower
    • Turf Flex Finish Mower
    • Rotary Cutter
    • Rotary Flex Cutter
    • Rotary Tiller
    • Dozer Blade
    • Snow Blower
    • Rotary Broom

    Specifications

    Engine
    Engine Type 3-Cylinder; Liquid Cooled, Diesel
    Horsepower 28.4 hp
    PTO HP gear/hst: 24.5 hp /22.3 hp
    Rated RPM 2500 rpm
    Specifications
    Wheelbase 65.6 in. (1665 mm)
    Height 80.7 in. (2050 mm)
    Width Minimum overall width: 53.5 in. (1360 mm)
    Weight Shipping weight: 2423 lbs. (1100 kg)
    Ground Clearance 10 in. (255 mm)
    General
    Fuel Capacity 7.9 gal. (30 l)
    Transmission Standard gear: 9Fx3R Constant mesh or Hydrostatic w/Cruise: 3 range
    Brakes Wet Disc
    Hydraulics Open Center
    Drive Type 4WD

    Compare Models

    		 Print








    Year 2010
    Manufacturer Massey Ferguson
    Model MF1528 4WD Platform; Compact Tractor
    Style Utility
    Engine
    Engine Manufacturer
    Engine Type 3-Cylinder; Liquid Cooled, Diesel
    Horsepower 28.4 hp
    PTO HP gear/hst: 24.5 hp /22.3 hp
    Rated RPM 2500 rpm
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 7.9 gal. (30 l)
    Transmission Standard gear: 9Fx3R Constant mesh or Hydrostatic w/Cruise: 3 range
    Brakes Wet Disc
    Hydraulics Open Center
    Drive Type 4WD
    Specifications
    Wheelbase 65.6 in. (1665 mm)
    Height 80.7 in. (2050 mm)
    Width Minimum overall width: 53.5 in. (1360 mm)
    Weight Shipping weight: 2423 lbs. (1100 kg)
    Ground Clearance 10 in. (255 mm)
    Tire Size
