Products » Kubota » RTV500
Model Quick Search

$14,920.00
$12,567.00
$2,353.00

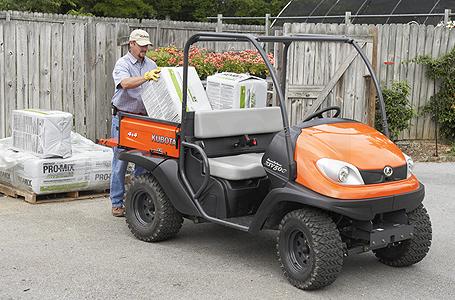

2008 Kubota RTV500

(HST additional)

Now until October 1, 2010
$2,353.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Kubota Liquid-cooled EFI Gasoline Engine: The RTV500's new 15.8-horespower, 2-cylinder Kubota gasoline engine is liquid-cooled to ensure reliability and minimize noise and vibration, reducing operator fatigue and increasing efficiency. The engine features an Electronic Fuel Injection (EFI) system that provides on-demand power, optimizes acceleration and enhances quiet operability. Plus, the EFl eliminates the need to adjust the carburetor-enabling better engine start-up in cold weather or after long-term storage, and improving engine serviceability.
  • New Variable Hydro Transmission (VHT PLUS): Kubota's exclusive and innovative hydrostatic transmission eliminates the need to adjust belt drives and provides the RTV500 with an exceptional level of performance, handling, and reliability under tough conditions. Ride the hills with quick acceleration and smooth, engine-assisted deceleration. In addition, the VHT PLUS offers outstanding traction and impressive power, providing the muscle to take you almost anywhere.
  • Comfortable Operator Area: Get in and get going. The RTV500 features ergonomic, well-placed controls for easy operation, and a comfortable seat, so both the driver and passenger can enjoy a full day of work or play without fatigue. The low operator platform offers ample and obstacle-free legroom, so it's simple to step on or off.
  • Designed for Convenient Transportation: Kubota specifically designed the RTV500's compact frame to make it easy to load onto a full-size pickup truck or trailer, so you can take it wherever you go. It's ideal for camping, hunting, or any rugged outdoor adventure.
  • Smooth, Reliable Semi-independent Rear Suspension
  • Dumping cargo bed: Use the RTV500's cargo bed to haul up to 441 lbs of dirt, gravel, rocks, hay or whatever will fit. The bed also manually tilts up to make dumping or unloading your cargo easy.
  • Standard Frame-integrated ROPS: Meets OSHA 1928.53 Rollover Protection Standards.
  • Front Guard (Optional)
Specifications
  • Engine Make: KUBOTA GZ46OF-E3-UV
  • Engine Type: 2-Cylinder, 4-cycle, GAS, OHC, water-cooled, EFI
  • Engine Displacement: 27.8 cu. in. (456 cc)
  • Engine Horsepower: 15.8 hp (11.8 kW) @ 3600 rpm
  • Exhaust system: Muffler with screen-type spark arrestor
  • Fuel tank capacity: 5 gal. (19 l)
  • Transmission: Variable hydro transmission (VHT PLUS)
  • Max. Traveling speed: 25 mph (40 km/h)
  • Wheels, drive system: 4, 4WD w/2WD selection
  • Differential lock: Standard; hand operated with mechanical holder
  • Gear selection: Hi-Lo range forward, neutral, reverse
  • Front / Rear Brakes: Dry-disc brakes
  • Parking brake: Rear wheel, hand lever
  • Steering: Rack & Pinion
  • Suspension Front / Rear: Independent, Mac-Pherson strut-type! Semi-independent, Multi-link
  • Length: 105.9 in. (2890 mm)
  • Width: 54.7 in. (1390 mm)
  • Height, overall: 72 in. (1829 mm)
  • Front tread centers: 40 in. (1016 mm)
  • Rear tread centers: 41 in. (1041 mm)
  • Wheelbase: 70.9 in. (1800 mm)
  • Ground clearance: Front Axle: 8.1 in. (206 mm) / Rear Axle: 16.8 in. (172 mm)
  • Turning diameter: 23.6 ft. (7.2 m)
  • Max. rolling weight (Towing capacity): 1,102 lbs. (500 kg)
  • Payload capacity: 1014 lbs. (460 kg)
  • Weight: 1311 lbs. (595 kg) with HDWS tires
  • Cargo bed Width x Length x Depth: 40.6 in. (1032 mm) X 33.7 in. (856 mm) X 11.4 in. (290 mm)
  • Cargo bed Volume: 9.0 cu. ft. (0.25 m2)
  • Bed height (unloaded): 31 in. (765 mm)
  • Cargo bed load: 441 lbs. (200 kg)
  • Sound level, operator ear: 83 dBA
  • Front Tires: 24 x9-12ATV, 6PLY, 24x 9-12 HDWS, 6PLY
  • Rear Tires: 24x 11-12ATV. 6PLY, 24x 11-12 HDWS, 6PLY
  • Body color: Orange, Camouflage (Realtree® Hardwoods®)
  • Speedometer: Opt.
  • Front guard: Opt.
  • Headrest: Opt.

Specifications

Engine
Engine Type 2-Cylinder, 4-cycle, GAS, OHC, water-cooled, EFI
Displacement 27.8 cu. in. (456 cc)
Cooling Water Cooled
Ignition EFI
Chassis
Front Suspension Independent, Mac-Pherson strut-type
Front Brakes Dry-disc brakes
Front Tire 24 x9-12ATV, 6PLY, 24x 9-12 HDWS, 6PLY
Rear Suspension Semi-independent, Multi-link
Rear Brakes Dry-disc brakes
Rear Tire 24x 11-12ATV. 6PLY, 24x 11-12 HDWS, 6PLY
Dimensions
Dry Weight 1311 lbs. (595 kg) with HDWS tires
Fuel Capacity 5 gal. (19 l)
Wheelbase 70.9 in. (1800 mm)
Ground Clearance Front Axle: 8.1 in. (206 mm) / Rear Axle: 16.8 in. (172 mm)
Box Capacity 9.0 cu. ft. (0.25 m2)
Towing Capacity 1,102 lbs. (500 kg)
Transmission
Transmission Variable hydro transmission (VHT PLUS)
Drive System 4, 4WD w/2WD selection
General
Speedometer Opt.
Colors Orange, Camouflage (Realtree® Hardwoods®)

Compare Models

 Print








Year 2008
Manufacturer Kubota
Model RTV500
Style 4x4
Chassis
Front Suspension Independent, Mac-Pherson strut-type
Front Brakes Dry-disc brakes
Front Tire 24 x9-12ATV, 6PLY, 24x 9-12 HDWS, 6PLY
Rear Suspension Semi-independent, Multi-link
Rear Brakes Dry-disc brakes
Rear Tire 24x 11-12ATV. 6PLY, 24x 11-12 HDWS, 6PLY
Dimensions
Dry Weight 1311 lbs. (595 kg) with HDWS tires
Front Travel
Fuel Capacity 5 gal. (19 l)
Rear Travel
Wheelbase 70.9 in. (1800 mm)
Ground Clearance Front Axle: 8.1 in. (206 mm) / Rear Axle: 16.8 in. (172 mm)
Box Capacity 9.0 cu. ft. (0.25 m2)
Rack Capacity
Towing Capacity 1,102 lbs. (500 kg)
Engine
Engine Type 2-Cylinder, 4-cycle, GAS, OHC, water-cooled, EFI
Displacement 27.8 cu. in. (456 cc)
Bore and Stroke
Cooling Water Cooled
Compression Ratio
Fuel System
Ignition EFI
General
Speedometer Opt.
Tachometer
Odometer
Colors Orange, Camouflage (Realtree® Hardwoods®)
Warranty
Transmission
Transmission Variable hydro transmission (VHT PLUS)
Drive System 4, 4WD w/2WD selection
