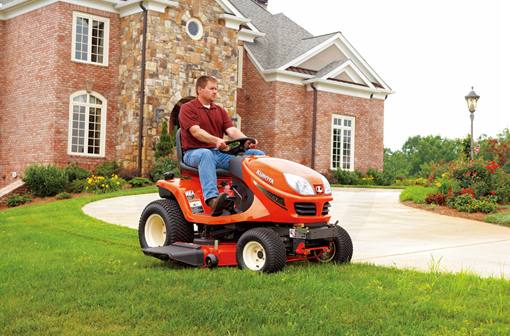

2009 Kubota GR2010 Garden Tractor

(HST additional)

Now until October 1, 2010
$2,353.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine model: GH630
    • Engine type: 2 cylinders; gasoline, air cooled
    • Displacement: 38.1 ci. (624 cc)
    • Gross horsepower: 20 hp (14.9 kW)
    • Engine layout: Horizontal
    • Fuel tank capacity: 4.8 gal. (18 l)
    Dimensions & Weight
    • Overall length: 77.2 in. (1960 mm)
    • Overall width (w/mower): 61.0 in. (1550 mm)
    • Overall height: 50.8 in. (1290 mm)
    • Wheelbase: 50.4in. (1280 mm)
    • Tire tread front/rear: 32.5 in. (825 mm) /31.5 in. (800 mm)
    • Weight (w/mower):881 lbs. (480 kg)
    Drive Train and Transmission
    • Transmission: Hydrostatic transmission
    • Transmission Drive: Shaft drive
    • Speed control: Single foot pedal
    • Traveling speed (Reverse): 0—3.1 mph (0-5.0 km/h)
    • Brake: Intemal expanding brake
    • PTO clutch: Mechanical wet mulit discs
    • Mower deck drive: U-joint shaft
    • Steering system: Glide Steer; hydrostatic power steering
    Tire Size
    • Tire size (front): 16x7.5—8
    • Tire size (rear): 23x10.50—12
    Other Performance Features
    • Operator’s deck: Flat
    • Seat adjustment: Slide
    • Seat suspension: Mechanical suspension with weight adjustment
    • Fuel gauge: Standard
    • Hour meter: Standard
    • Easy checker: Standard
    • Mower OPC.: Standard
    • Travel OPC.: Standard
    • Blade shut off brake: Mechanical wet multi discs
    • Grass catcher: Optional
    • Grass catcher capacity: 10 bushels
    • Grass catcher bag material: Cloth
    Mower Specifications
    • Cutting width: 48 in. (1219 mm)
    • Mower blade drive: Shaft drive
    • Lifting device: Hydraulic
    • Mower mounting method: Parallel linkage
    • Cutting height: 1.0 in to 4.0 in. (25 mm to 102 mm)
    • Cutting height increments: 1/4 in.
    • Number of blades: 3
    • Direction of discharge: Right side
    • Minimum uncut diameter: 40 in. (1016 mm)
    • Mower deck ground clearance: 5.5 in. (140 mm)
    Other Optional Implements
    • Grass Catcher: Model GC54-GR
    • Front Blade: 48 in.; Model GR2705
    • Snow Blower: 46 in.; Model GR2727

    Specifications

    Engine
    Engine Manufacturer Kubota
    Horse Power 20 hp (14.9 kW)
    Engine Type 2 cylinders; gasoline, air cooled
    Displacement 38.1 ci. (624 cc)
    General
    Transmission Hydrostatic transmission
    Wheel Size Front: 16x7.5—8; Rear: 23x10.50—12
    Fuel Capacity 4.8 gal. (18 l)
    Deck
    Deck Size 48 in. (1219 mm)
    Discharge Type Right Side

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kubota
    Model GR2010 Garden Tractor
    Style Riding
    Deck
    Deck Size 48 in. (1219 mm)
    Discharge Type Right Side
    Engine
    Engine Manufacturer Kubota
    Horse Power 20 hp (14.9 kW)
    Engine Type 2 cylinders; gasoline, air cooled
    Displacement 38.1 ci. (624 cc)
    General
    Transmission Hydrostatic transmission
    Wheel Size Front: 16x7.5—8; Rear: 23x10.50—12
    Fuel Capacity 4.8 gal. (18 l)
