Products » Kubota » KX080-3
Model Quick Search

$120,720.00
$93,100.00
$27,620.00

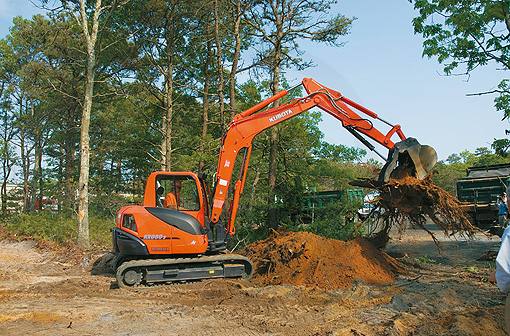

2009 Kubota KX080-3

with Wide Tracks & Hyd Thumb

Now until October 1, 2010
$27,620.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine: Kubota V3307 DI-T
    • Output (SAEJ 1995 gross): 70.0 hp (52.2 kW) @ 2000 rpm
    • Output (SAEJ 1349 net): 66.5 hp (49.6 kW) @ 2000 rpm
    • Displacement: 203.3 ci. (3331 cc)
    • Fuel reservoir: 30.4 in. (115 mm)
    Dimension & Weight
    • Type of cabin: ROPS / FOPS cabin
    • Overall length: 21 ft. 1.9 in. (6450 mm)
    • Overall height:8 ft. 4 in. (2540 mm)
    • Overall width: 7 ft. 2.6 in. (2200 mm)
    • Min. ground clearance: 15.4 in. (390 mm)
    • Operating weight (including operators weight @ 175 lbs.) (rubber/steel): 18254 lbs. (8280 kg)/18364 lbs. (8330 kg)/
    Hydraulic System
    • Pump capacity: 19.0 gpm (72.0 l/min) Variable x 2/17.6 gpm (66.6 l/min) Gear x1
    • Auxiliary hydraulic flow rate: 26.4 gpm (10 l/min)/17.6 gpm (66.6 l/min)
    • Max. breakout force (Bucket/Arm): 14660 lbs. (6650 kgf)/8554 lbs. (3880 kgf)
    • Hydraulic oil (reservoir/system): 19.8 gal. (75 l)/35.7 gal. (135 l)
    Drive System
    • Traveling speed (low/high): 1.7 mph (2.7 km/h)/3.1 mph (4.9 km/h)
    • Max. traction force (Low speed): 14615 lbs. (6630 kgf)
    • Tumbler distance: 7 ft. 6.6 in. (2300 mm)
    • Crawler length: 9 ft. 6.2 in. (2900 mm)
    • Shoe width (rubber/steel): 17.7 in. (450 mm)/17.7 in. (450 mm)
    • Ground contact pressure (Rubber/Steel): 5.22 psi (.367 kgf/cm2)/5.25 psi (.369 kgf/cm2)
    • Type of tracks: Rubber or Steel
    Swing System
    • Unit swing speed: 9.5 rpm
    • Boom swing angle( Left/Right): 70 degrees/60 degrees
    Blade
    • Width: 7 ft. 2.6 in. (2200 mm)
    • Height: 1 ft. 7.7 in.
    • Max. lift above ground: 19.7 in. (500 mm)
    • Max. drop below ground: 19.7 in. (500 mm)
    Other Optional Implements
    • Bucket
    • Hydraulic breaker
    • Quick attach coupler
    • Quick attach bucket
    • Hydraulic thumb

    Specifications

    Engine
    Engine Type 203.3 ci. (3331 cc); Kubota V3307 DI-T
    Engine Manufacturer Kubota V3307 DI-T
    Horsepower Output (SAEJ 1995 gross): 70.0 hp (52.2 kW) @ 2000 rpm; Output (SAEJ 1349 net): 66.5 hp (49.6 kW) @ 2000 rpm
    Rated RPM 2000 rpm
    Fuel Capacity 30.4 in. (115 mm)
    General
    Length 21 ft. 1.9 in. (6450 mm)
    Width Overall width: 7 ft. 2.6 in. (2200 mm)
    Height Overall height: 8 ft. 4 in. (2540 mm): 8 ft. 4 in. (2540 mm)
    Weight Rubber/Steel tracks (including operators weight @ 175 lbs.) :18254 lbs. (8280 kg)/18364 lbs. (8330 kg)
    Hydraulic System Pump capacity: 19.0 gpm (72.0 l/min) Variable x 2/17.6 gpm (66.6 l/min) Gear x1; Auxiliary hydraulic flow rate: 26.4 gpm (10 l/min)/17.6 gpm (66.6 l/min)
    Boom Swing Left: 70 degrees; Right: 60 degrees
    Speed Low 1.7 mph (2.7 km/h); High: 3.1 mph (4.9 km/h)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kubota
    Model KX080-3
    Style Compact
    Engine
    Engine Type 203.3 ci. (3331 cc); Kubota V3307 DI-T
    Engine Manufacturer Kubota V3307 DI-T
    Horsepower Output (SAEJ 1995 gross): 70.0 hp (52.2 kW) @ 2000 rpm; Output (SAEJ 1349 net): 66.5 hp (49.6 kW) @ 2000 rpm
    Rated RPM 2000 rpm
    Aspiration
    Fuel Capacity 30.4 in. (115 mm)
    General
    Length 21 ft. 1.9 in. (6450 mm)
    Width Overall width: 7 ft. 2.6 in. (2200 mm)
    Height Overall height: 8 ft. 4 in. (2540 mm): 8 ft. 4 in. (2540 mm)
    Weight Rubber/Steel tracks (including operators weight @ 175 lbs.) :18254 lbs. (8280 kg)/18364 lbs. (8330 kg)
    Hydraulic System Pump capacity: 19.0 gpm (72.0 l/min) Variable x 2/17.6 gpm (66.6 l/min) Gear x1; Auxiliary hydraulic flow rate: 26.4 gpm (10 l/min)/17.6 gpm (66.6 l/min)
    Boom Swing Left: 70 degrees; Right: 60 degrees
    Max Dig Depth
    Max Dump Height
    Max Reach
    Speed Low 1.7 mph (2.7 km/h); High: 3.1 mph (4.9 km/h)
